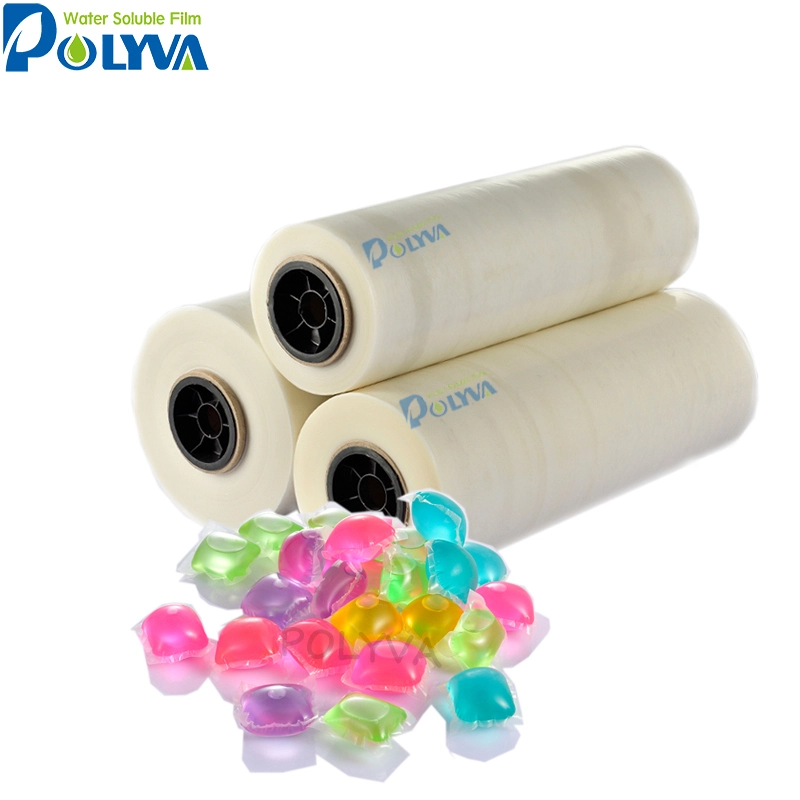

Customize pva water soluble film,cold water sluble pva film for Pesticide package
NZD series automatic laundry pods packing machine is a rotary drum-type unit dose non aqueous liquid pods forming, filling, sealing and cutting equipment. It is an automatic high capacity water-sealing packing machine specially designed for high concentrated laundry detergent pods. It has good adaptability of water soluble PVA film and detergent liquid.
The machine is particularly suitable for packing high concentrated liquid detergent,missible oil pesticide,oil chemicals agent and some other non aqueous system contents small dose single packs.It is a preferred packing way of product upgrade.
- Drum-type filling,forming,servo dRIving.
- High consistence,CNC processing mold cavity.
- Mold surface treatment,double durability.
- Patented water sealing design,protect film water solubility.
- Plunger type measuring filling,0.02ml filling precision.
- Integrated continuous cutting design,stable and effective.
- PLC control,touch screen operate,high automatic,high intelligent.
- Rim scrap less than 2cm,high film usage rate.
- Mold system can be directly washed and cleaned by water, easier to clean and maintain.
| Min capacity | 240pcs/min |
| Max capacity | 600pcs/min |
| Forming drum | 10lanes*48row |
| Pack size | 10-30g(Customized) |
| Weight tolerance | ±0.05g |
| Power | 10KW |
| Dimension | L3500*W1150*H2350mm(apporx) |
Q. What are the main application of PVA film ?
A.:The main application of PVA water soluble film includes liquid or powder laundry detergent pods packing, pesticide packing , water transfer printing ,medical laundry bags and so on.
Q. What is the advantage of PVA water soluble detergent packets over the regular detergent packaging ?
A.:Using the single dose detergent packet is more convenient, more rational, more scientific and greener
Q. What machinery can run water-soluble films?
A. Horizontal flow wrapping machines, thermoforming machines and vacuum forming machines (horizontal and rotary) may run this film. Vertical Form Fill, Seal machines (trans wrap type), some types of stick pack machines, some types of 3 side and 4 side seal Vertical Form Fill and Seal machines, pleat wrapping and cut and wrap block wrapping machines are all able to run water-soluble films.
Q. How much weight can a water-soluble bag hold?
A. Laundry bags are expected to contain a maximum of 12kg (26 lbs) of linen when loaded into a supporting outer transport bag. Chemical packages are typically up to 10kg, though there is not theoretical reason for higher loadings given correct filling and handling.
Q: what are the special advantages of your products?
A: our company's product raw material USES all is harmless material, assure user's safety.
Our products are more suitable for packaging machine and improve packaging efficiency.
Our company's product weatherability reaches the same level of foreign products, as far as possible to reduce the customer's use of environment and storage environment requirements.
