NZE530 High capacity PVA PVOH laundry detergent pods packing machine water soluble laundry capsules making machine
Application
NZ Series high speed automatic laundry pods packaging machine adopts the latest rapid conversion production technology, filling technology and four-dimensional cost reduction technology, all of these effectively improve the process efficiency and reduce the production cost. It is suitable for the product modeling, fast conversion production requirements, stable and efficient production process of daily chemical manufacturing enterprises.
Performance characteristics：
*Four-dimensional cost reduction technology.
*Fast change of drum, high efficiency of conversion production.
*"One click" operating system,"minus one" production mode.
*Independent servo power drive, one key switch parameters, easier operation.
*Mold system can be directly cleaned with water, and easier to maintained and preserved.
*7*24 Multi-team service model, 1+1 global long-term support system.
Fast switching & high production conversion efficiency
①Replaceable Mold
②Drum-type Filling forming, servo driving
③Patented water sealing design, protect film water solubility
“One click” operating sysem
Independent servo power drive, one key switch parameters, easier operation.
Integrated continuous cutting design stable and effective
Integrated continuous cutting design stable and effective.
Four-dimensional cost reduction technology
①Realize high film utilization ②Efficient production 780pcs/min
Introduction
Polyva is a reputed capsule filling machine manufacturer in China. We provide a complete solution for the preparation of encapsulation in laundry detergent pods.NZ Series high speed automatic laundry pod packaging machine adopts the latest rapid conversion production technology, filling technology, and four-dimensional cost reduction technology, all of these effectively improve the process efficiency and reduce the production cost.

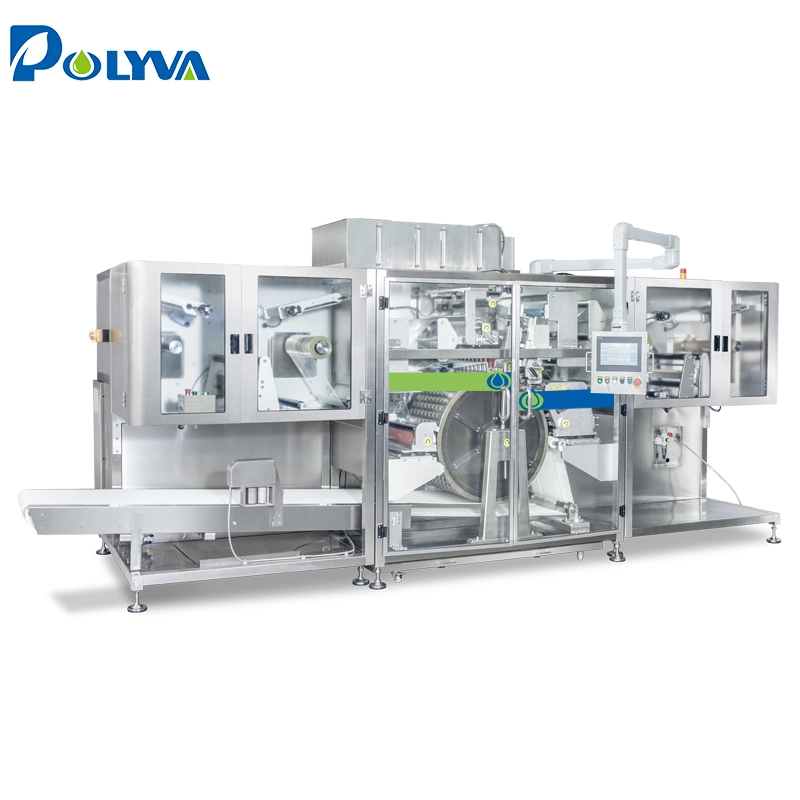

NZE530 high speed automatic liquid capsule packaging machine is a rotary drum-type small dose liquid capsule forming and filling equipment. Also known as laundry capsules making machine, water soluble packaging machine, laundry pods packing machine and automatic capsules filling machineThe mold and vacuum system are very stable and nearly don't need any maintenance. It will only take 20 minutes to switch the mold with the same length and width, while it will take around 1 hour to switch the mold with different lengths and widths, which effectively improves the equipment utilization.
Being capsule filling machine supplier we understand challenging requirements of laundry pods making. We provide latest range of best capsule packing machine which adheres to current international requirements. It is suitable for the product modeling, fast conversion production requirements, stable and efficient production process of daily chemical manufacturing enterprises.
10+
YEARS R & D Experience
80000+
㎡ Manufacturing base
50+
Patents
Types of products can be
Technical Parameter
Types of products can be produced | Liquid |
| Powder | |
| Granule | |
| Cream (Customizable) | |
| Production capacity | 0.6s/Row ~1.8s/Row |
| Specification of packaging | 1~25g |
| Precision of canning | ±0.1g |
| Consumed power | 15kw |
| Machine size( L×W×H ) | 5200×1600×2300mm |
Mold Shape Can Be Customized
